DT-230-360i-10-MIC wo
Item number:
DT202003- All in One Sensor - Made in Germany
- Motion or presence detector simply at the push of a button
- Zero crossing switching - switching safely
- Presence dependent lighting control - contactless & hygienic

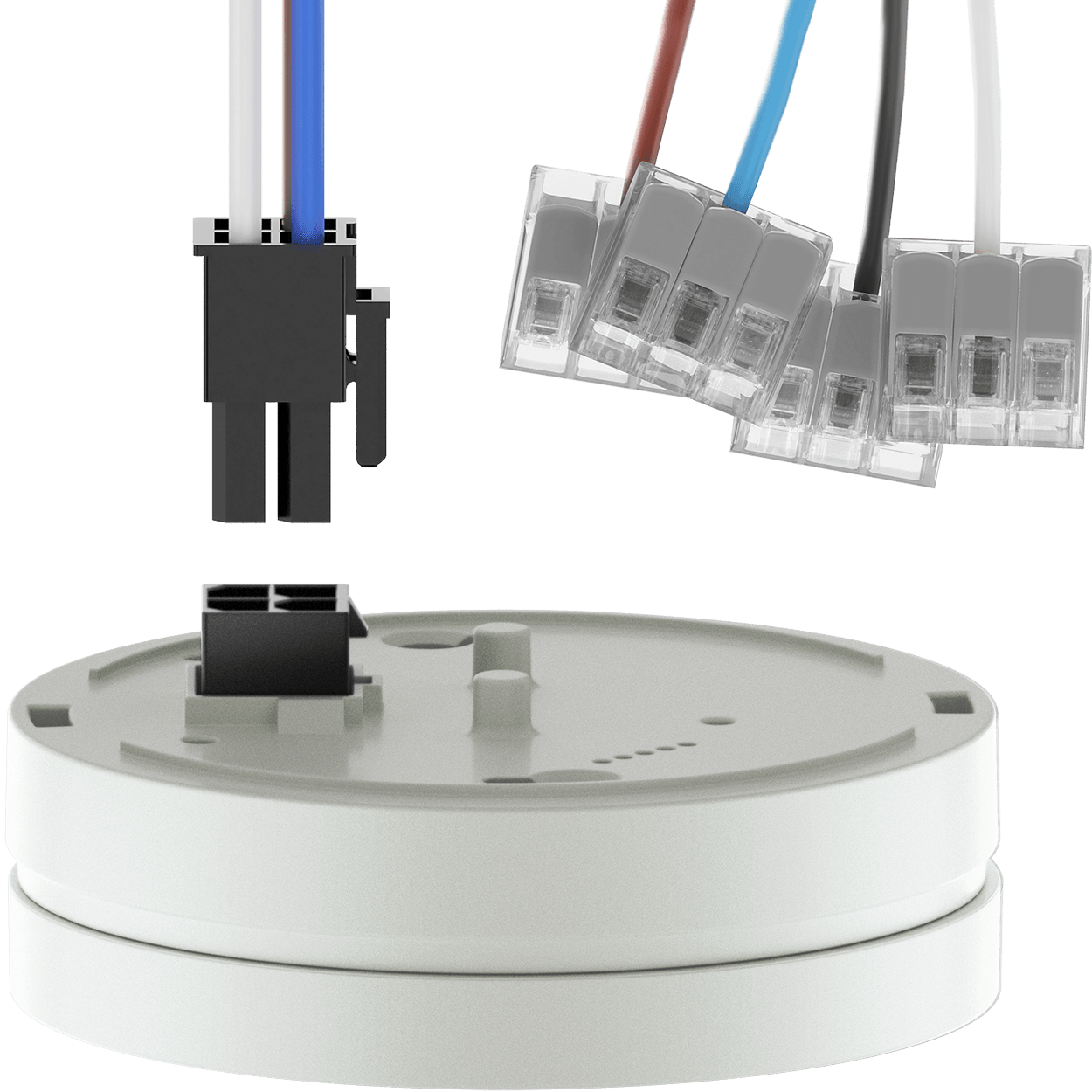

- Pluggable connection cable - simply fast and cost-efficient
- Through-wiring with 3-fold lever clamp - enclosed
- 4-fold mounting -flush-mounted, surface-mounted, recessed and flush with ceiling - universal
- 360° detection area with 10m range at 2.8m mounting height
- Range extension - simple by master-master connection
- 8 factory programs selectable or set individually via IR remote control
- 5 year warranty
| Device type: | All in One Sensor (Motion- or presence detector) |
|---|---|
| Additional function: | Acoustic sensor |
| Operating voltage: | 230VAC / 50-60Hz |
| Power consumption: | 0,2W |
| Switching capacity: | 230 V/50-60 Hz, 2300 W/10 A (cos phi = 1), 1150 VA/5 A (cos phi = 0,5) |
| Range: | Ø 10m |
| Target brightness approx.: | 0 - 2000 Lux [+ Daytime operation] |
| Switch-off time delay: | 1 sec. to 180 min. |
| Operating type: | Fully- or semi-automatic |
| Interface: | Push button input |
| Connection: | Plug contact with connection cable incl. 3-fold lever clamp |
| Protection type: | IP20 |
| Protection class: | II |
| Dimensions: | Ø 84mm, ↕ H: 30mm |
| Area of application: | Interior |
| Operating temperature: | 0°C ... +50°C |
| Housing color: | White [RAL 9016] |
| Lens color: | Opal |
| Housing: | UV-stabilized polycarbonate |
