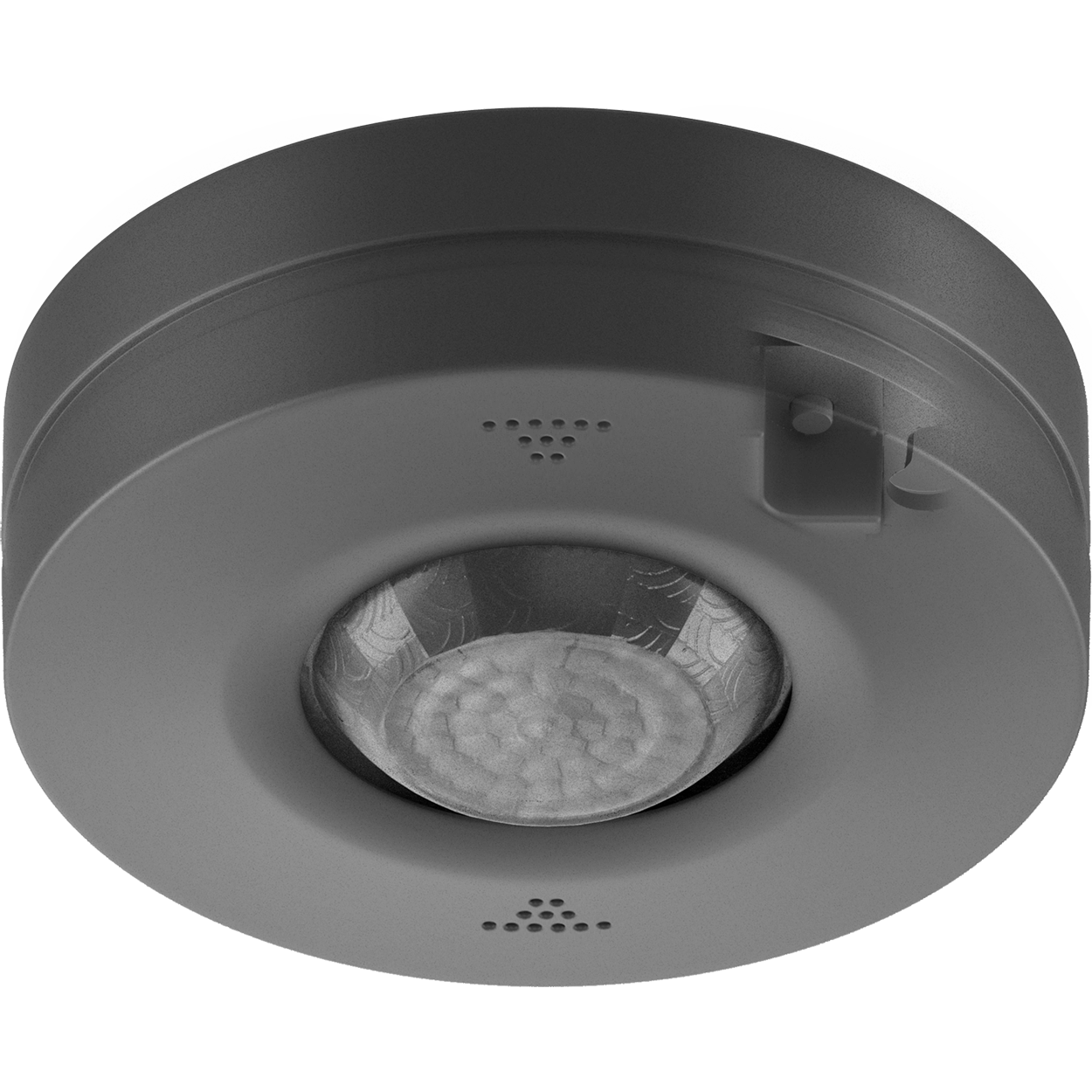

DT-KNX-360i-10-SENSO ao
Item number:
DT202016- Multi Sensor - Made in Germany
- Presence dependent lighting control - contactless & hygienic
- Extensive building automation capabilities through motion detection with additional measurement of ambient temperature; relative humidity; volatile organic compounds (VOC) and CO₂ equivalents
- Additional acoustic sensor - optimally expandable area coverage
- 4-fold mounting -flush-mounted, surface-mounted, recessed and flush with ceiling - universal
- 360° detection area with 10m range at 2.8m mounting height
- Extensive ETS parameterization options
- 5 year warranty
| Device type: | Multi Sensor |
|---|---|
| Additional function: | Acoustic sensor, measurement: temperature; relative humidity; VOC / CO₂ equivalents |
| Operating voltage: | 29-31 VDC (KNX) |
| Power consumption: | 0,2W |
| Range: | Ø 10m |
| Target brightness approx.: | 0 - 2000 Lux [+ Daytime operation] |
| Switch-off time delay: | up to 18 h |
| Operating type: | Fully- or semi-automatic |
| Interface: | Switch input via KNX / EIB switch |
| Connection: | KNX Bus-System |
| Protection type: | IP20 |
| Protection class: | III |
| Dimensions: | Ø 84mm, ↕ H: 30mm |
| Area of application: | Interior |
| Operating temperature: | 0°C ... +50°C |
| Housing color: | Anthracite [RAL 7021] |
| Lens color: | Opal |
| Housing: | UV-stabilized polycarbonate |
